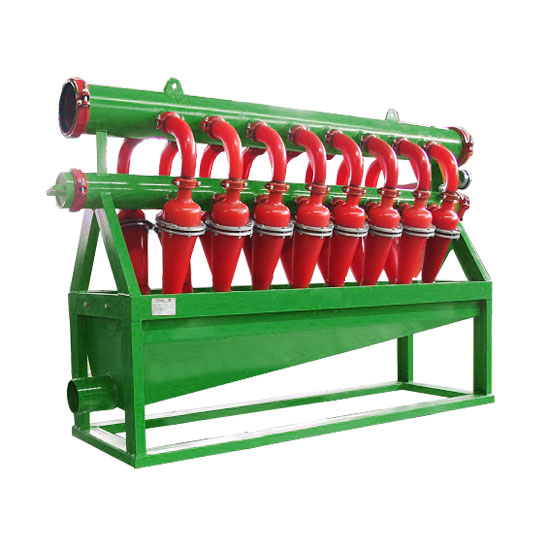

Drilling Desilter

Drilling desilter is an important equipment used in the drilling fluid solids control system. TR is a manufacturer of drilling desilter.

Free to contact us

  • Product Struction

The drilling desilter is an important equipment used in the drilling fluid solid phase control system. It is mainly used to remove fine solid particles in the drilling fluid, especially particles between 15 and 44 microns in size. These particles, if not removed, can adversely affect drilling operations, such as reducing drilling efficiency, increasing drilling costs, and damaging drilling equipment.

In the drilling operation, the role of drilling mud desilter is very important. It can not only improve the quality of drilling fluid, reduce friction and wear during drilling, but also extend the service life of drilling equipment and reduce drilling costs. In addition, drilling desilters help reduce environmental pollution, as the negative environmental impact of drilling waste can be reduced by removing solid particles from drilling fluids.

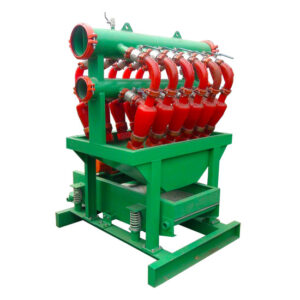

Drilling Desilter suppliermud desilter manufacturer

Drilling Desilter Technical Parameters

Model TRCN100-4N/6N TRCN100-8N TRCN100-12N TRCN100-20N
Capacity 60 / 90 m³/h 120m³/h 180m³/h 300m³/h
Cyclone Specs 4in(DN100) 4in(DN100) 4in(DN100) 4in(DN100)
Cyclone Qty 4nos / 6nos  8nons 12nons 20nons
Working Pressure 0.25-0.4mPa 0.25-0.4mPa 0.25-0.4mPa 0.25-0.4mPa
Inlet Size DN125mm DN125mm DN150mm DN150mm
Outlet Size DN150mm DN150mm DN200mm DN200mm
Separation 15um-44um 15um-44um 15um-44um 15um-44um
Bottom shaker TRTS60 TRTS60 TRTS60 /
Dimension 1510X1360X2250 1510X1360X2250 1510X1500X2250
Weight 550kg / 560kg  580kg 700kg

Drilling Desilter has a number of significant advantages:

First of all, it has high mud desilter efficiency, which can effectively remove fine particles in the mud and improve the quality and performance of the mud.

Secondly, the mud remover has a compact structure, a small footprint, and is easy to install and operate.

In addition, the drilling desilter also has the advantages of stable operation, high reliability, low maintenance cost, and can meet the needs of various industrial production and engineering construction.

In order to ensure the normal operation of the drilling desilter and extend its service life, regular maintenance and maintenance are required. This includes cleaning the cyclone and mud shale shaker, inspecting and replacing worn parts, adjusting the operating parameters of the equipment, and so on. In addition, it is also necessary to pay attention to controlling the flow rate and pressure of drilling fluid during use to avoid excessive load and damage to the mud desilter.

Personalized customized services:

We know that each customer's needs are unique, therefore, TR provides personalized customized services, according to the actual working conditions and special requirements of customers, tailor-made for you to create the most suitable mud desander solution. Our team of professional engineers will communicate with you deeply, understand your needs, and provide you with one-stop service from equipment selection, design, manufacturing to installation and commissioning to ensure that your sand removal equipment can be perfectly integrated into your production process and create maximum value for you.

Perfect after-sales service system

In addition to providing high-quality products and personalized customized services, TR also has a perfect after-sales service system. We have a number of after-sales service centers and professional after-sales teams around the world, able to respond to customer needs in a timely manner, to provide you with a full range of technical support and after-sales service. Whether it is installation, commissioning, maintenance or troubleshooting, we will be happy to serve you to ensure that your equipment is always in the best running condition.

TR is a manufacturer of drilling desilters. We are a design, sales, production and service drilling desilter manufacturer.

By choosing our desilters, you are choosing an efficient, environmentally friendly and reliable production solution. We have a professional R & D team and advanced production equipment, committed to providing customers with the best quality products and the most perfect service. Our desilters are not only of excellent quality, but also reasonably priced, with a very high cost performance. Whether you are a large business or an SME, we can tailor the desilter equipment and solutions that best suit your needs. If you need a drilling desilter, start with TR. We can provide the design for free.
