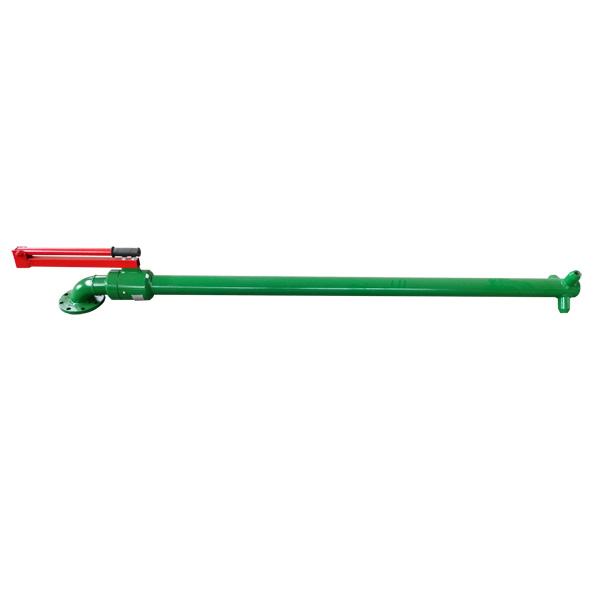

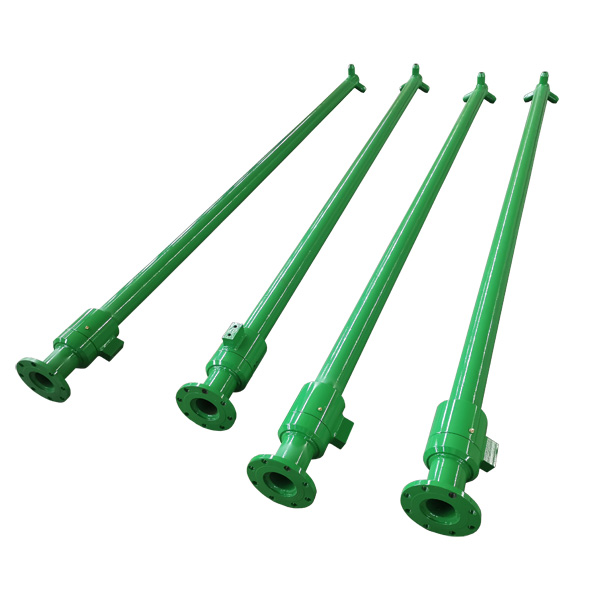

Mud Gun
*High Pressure
*3 nozzles
*360 degree rotation
Product Struction

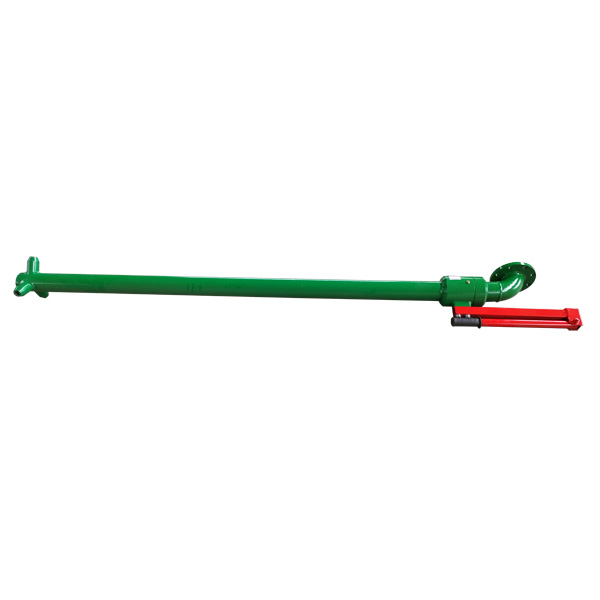

Mud Gun is typically mounted on the walls of mud tanks and are equipped with nozzles that direct high-pressure jets of fluid into the tank.This agitation helps to keep the solids suspended in the drilling mud, preventing them from settling at the bottom of the tank.By maintaining a uniform mixture, mud guns ensure that the drilling fluid can perform its functions effectively.
Operation of the Mud Gun
The operation of a mud gun is relatively straightforward.It is draws fluid from the tank and expels it at high velocity through the nozzle.This creates turbulence within the tank, which helps to mix the drilling mud thoroughly.The pressure and flow rate can be adjusted based on the specific requirements of the drilling operation, making it versatile tools for various applications.
It is a specialized piece of equipment designed to mix and agitate drilling mud, a crucial component in drilling operations. Drilling mud, also known as drilling fluid, serves multiple purposes: it cools and lubricates the drill bit, carries cuttings to the surface, and helps maintain pressure in the wellbore.
Model | TRNJQ50-3 | TRNJQ50-3X | TRNJQ80-3 | TRNJQ80-3X |
Diameter | 50mm | 50mm | 80mm | 80mm |
Work Pressure | ≤6.4MPa | ≤3.2MPa | ≤6.4MPa | ≤3.2MPa |
Nozzle Number | 1 or 3 | |||
Rotation Angle | N / A | 360° | N / A | 360° |
Benefits of Using Mud Gun for Mud Tanks
1.Enhanced Fluid Properties.
By keeping the drilling mud well-mixed, mud guns help maintain the desired viscosity and density of the fluid.This is crucial for effective drilling and can lead to improved performance and reduced costs.
2.Reduced Sedimentation.
One of the primary functions of a mud gun is to prevent the settling of solids within the mud tank.This not only prolongs the life of the drilling fluid but also minimizes the need for frequent cleaning and maintenance of the tank.
3.Improved Efficiency.
With a well-mixed drilling fluid, the drilling process becomes more efficient.The mud gun ensures that the fluid can effectively carry cuttings to the surface, reducing the risk of blockages and downtime.
4.Cost-Effectiveness.
By maintaining the quality of the drilling mud, mud guns can help reduce the amount of new fluid required, leading to significant cost savings over the course of a drilling project.
Mud gun is an indispensable tool for managing drilling fluids in mud tanks.It is ability to agitate and circulate drilling mud ensures that the fluid remains effective throughout the drilling process.By preventing sedimentation and maintaining the desired properties of the mud, it contribute to the overall efficiency and success of drilling operations.
