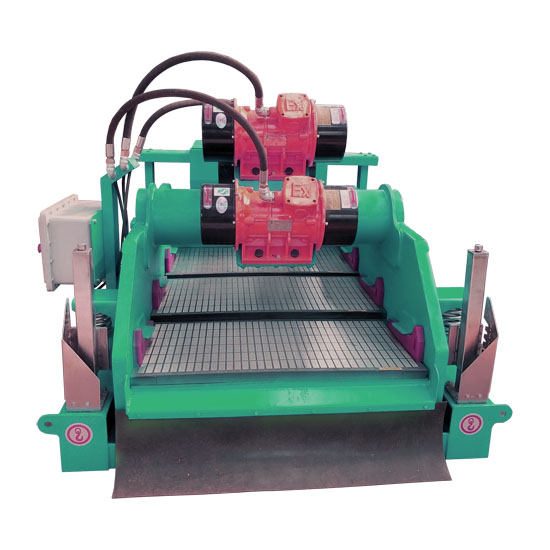

Mud Shale Shaker
*Vibration Track Uniform
*Screen Options More Choice
*Vibratings Strength 7.5
Product Struction
Mud Shale Shaker is a kind of solid-liquid separation equipment widely used in drilling fluid circulation system (drilling solids control system), which is mainly used for filtering and screening large particles in drilling fluid to achieve primary screening. TR mud shale shaker is the third generation of linear shale shaker.
Mud Shale Shaker Technical Parameters
Model | TRZS584 | TRZS583 | TRZS703 |
Vibrating Model | Linear | Linear | Linear |
Motor Power | 2×1. 72KW | 2×1. 5KW | 2×1. 72KW |
Vibrating Strength | ≤7. 5G | ≤7. 0G | ≤7. 0G |
Amplitude | 6. 0~7. 2mm | ||
Capacity | 615GPM | 615GPM | 527GPM |
Deck Adjustment | -3°~3° | -3°~3° | -3°~3° |
Screen of Deck | 4 | 4 | 3 |
Electric | 380V/50HZ, 460V/60HZ or Customized | ||
Decibels | <85db | <85db | <85db |
Ex Standard | ExdIIBt4 / IEC EX/ ATEX | ||
Dimension | 2800X1600X1690 | 2800X1600X1690 | 2800X1785X1750 |
Weight | 1750kg | 1550kg | 1550kg |
Structure and principle of Mud Shale Shaker
Mud shale shaker is mainly composed of screen body, shaker screens, vibration motor, shock absorber spring, bracket and other components. The vibration motor is the key component that drives the screen body to carry out periodic vibration, so that the material is moved in a straight line up and forward on the shaker screen, and the screen plays the role of filtering and screening, separating the solid particles and liquid effectively.
Drilling shaker is the most widely used mud shale shaker. All mud shakers are designed by TR itself, including the balanced elliptical motion shaker and the Mongoose shale shaker. All shakers can be mounted on the shaker by wedge or hook. We can according to customer requirements, linear motion, or balance elliptical motion and double track motion.
TR is a professional manufacturer for producing drilling shale shaker. TR Series Shale Shaker is devided into linear motion and balanced elliptical as per the vibration locus. Different models be named on the basis of the different capacity.
If you need mud shale shaker, We will provide the high quality drilling shale shaker and best service. Your best mud shale shakers start from TR solids control.
