Derrick Desilter Cones Replacement
*Derrick 4" Desilter Cone Assembly
Product Struction
Hydro Cyclone Cones are basically to separate liquid from earth. During suction it is very critical to have a system that will operate efficiently.
We manufacturer Hydro Cyclone Cone Assemblies i.e. Desanders cones and Desilters cones. The separation process is carried out by employing centrifugal forces. The angle of the fluid entry has been specifically designed to facilitate the flow and separation. The desilter Cones are made of high durameter polyurethane with optional steel inserts, which ensure consistent productivity.
Desander Cones remove abrasive, coarse solid particles upto 60 microns.
Desander Cones are available in 10" attachments with a 4" inlet and a 6" outlet.
Desilter Cones remove fine sand and silt down to 20 microns.
Desilter Cones are available of 4" size that have a 2" inlet and a 2" outlet.

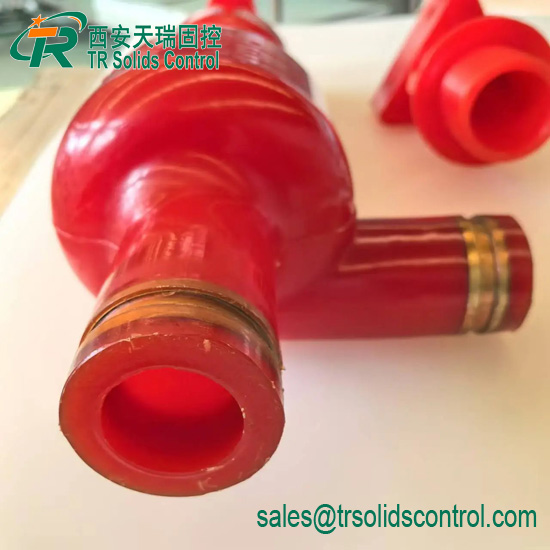

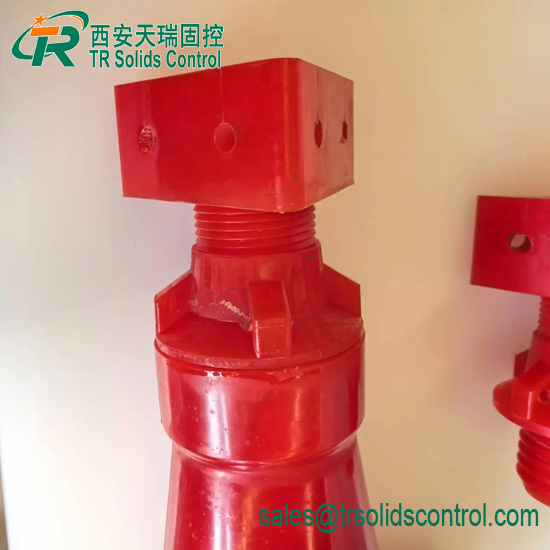

Derrick Desilter Cone Assembly replacement

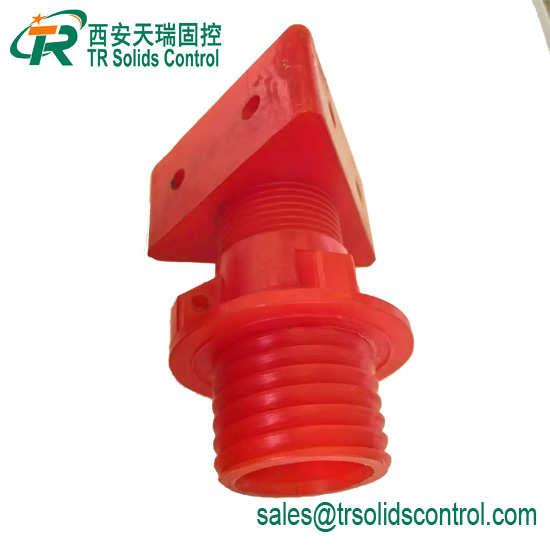

Derrick 4" Desilter Cone Assembly
| No. | Description for 10", 16 or 20" Cone Desilters | Part No. | |
| 1 | Body | 10523-00 | MRT 1102/132 |
| 2 | Circular Cone | 10523-01 | MRT 1102/134 |
| 3 | Mud Cleaner Nut | 10523-03 | MRT 1102/133 |
| 4 | Elbow | 10523-02 | MRT 1102/19 |
Desander Desilter Cones Parameter
| Cones Model | Capacity | Material | Diameter | Seperation size |
| 12 inch | 160-180m³ | Polyurethane/Foundry iron | 300mm | 47-76um |
| 10 inch | 90-120m³ | Polyurethane/Foundry iron | 250mm | 47-76um |
| 8 inch | 60-80m³ | Polyurethane | 200mm | 47-76um |
| 5 inch | 20-30m³ | Polyurethane | 125mm | 15-47um |
| 4 inch | 12-15m³ | Polyurethane | 100mm | 15-47um |
| 3 inch | 8-10m³ | Polyurethane | 75mm | 15-47um |
Desilter Cones for Drilling Mud System
TR desander desilter cones adopted 100% Polyurethane or abrasion resistant alloy material, and we use clamp design, ensuring long life and easy maintenance. it is the ideal products to match desander and desilter. TR Solids Control provide 4″-12″ Polyurethane cyclones for desander desilter and 12″-20″ iron cyclone for desander plant, desander unit.
Desander Desilter Cones for drilling mud cleaner (Desander Desilter), includes: 4-5″ inch Desilter Cones, 8-12″ inch Desander Cones.
We are an exporter of Mud Cleaner. Our factory approval the API, drilling cleaner have the API certification. TR solids control is the designed ,selling, production, service and delivery of Chinese fluids cleaner manufacturer. We will provide the high quality drilling mud shaker and best service. Your best Derrick Desilter Cone start from TR solids control.
