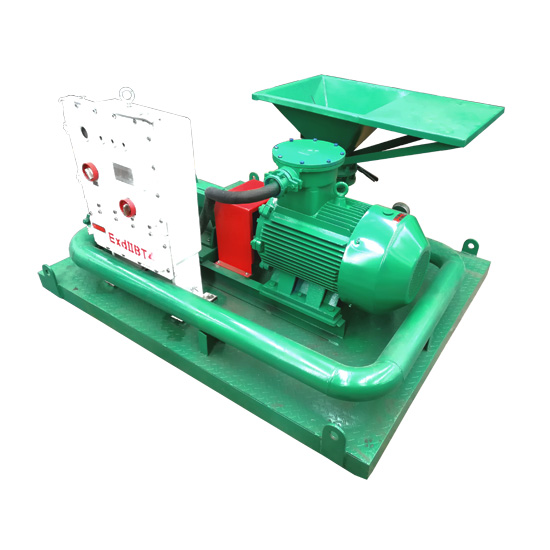

Jet Mixing Device
*Hoppers can be Venturi hopper.
*Make Pumps Higher Performance
*Demand for 1500m ~ 9000m Well Drilling
*More Flexible on Hopper and Pump Quantities
*Centrifugal Pump is Mechanical Seal Type
*Easy to Operate and Maintain
Product Struction
In oil drilling, cementing operations, trenchless engineering and various industrial fields involving mud treatment, jet mixing devices are playing an indispensable role. It is a kind of advanced equipment that can mix different materials quickly and evenly, which provides a strong guarantee for the smooth progress of various projects.

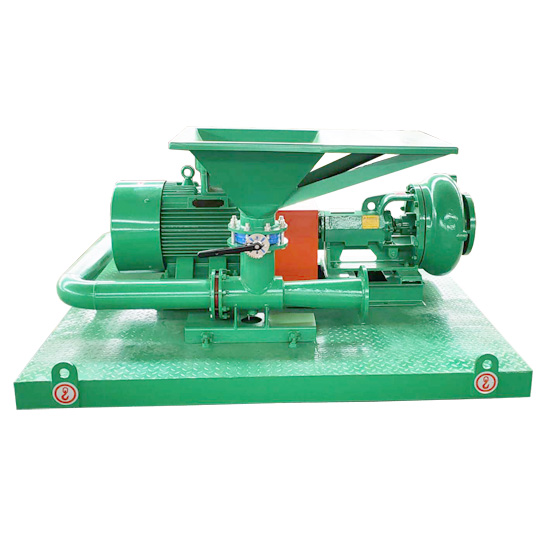

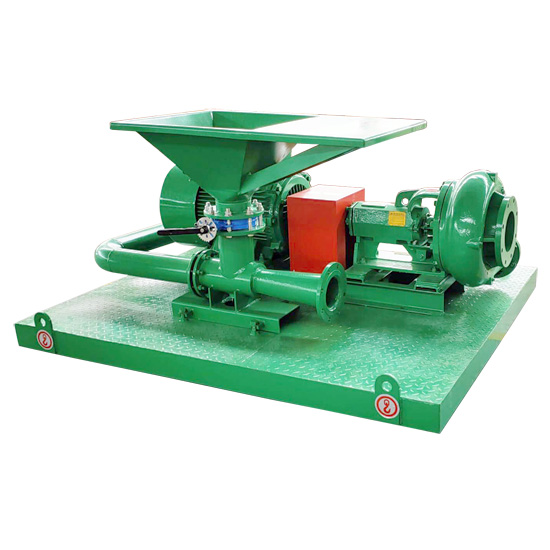

The jet mixing device is mainly composed of Mud hopper, mixing tank,mission magnum centrifugal pump . The core component of the jet machine uses the jet principle to generate negative pressure through the high-speed jet fluid, which inhales the materials that need to be mixed and mixes them fully in the mixing chamber.
Jet Mixing Device of Technical Parameters
| Model | TRSLH150-50 | TRSLH150-40 | TRSLH150-30 | TRSLH100 |
| Capacity | 240m3/h | 180m3/h | 120m3/h | 60m3/h |
| Centrifugal Pump | TRSB8X6-13J（55KW） | TRSB6X5-12J（45KW） | TRSB5X4-13J（37KW） | TRSB5X4-13J（37KW） |
| Working Pressure | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa |
| Feed Inlet | DN150 | DN150 | DN150 | DN150 |
| Nozzle Dia. | 50mm | 42mm | 35mm | 35mm |
| Hopper Size | 600 X600m | 600 X600mm | 600 X600mm | 600 X600mm |
| Burden Speed | ≤100kg /min | ≤80kg /min | ≤60kg /min | ≤60kg /min |
| Mud Density | ≤2.8g/cm³ | ≤2.4g/cm³ | ≤2.0g/cm³ | ≤2.0g/cm³ |
| Mud Viscosity | ≤120s | ≤120s | ≤80s | ≤80s |
| Dimension | 2200×1700×1200 | 2200×1700×1200 | 2000×1650×1100 | 2000×1650×1100 |
| Weight | 1680kg | 1400kg | 1280kg | 1100kg |
The role of jet mixing device:
- It can realize the rapid and uniform mixing of various materials. Whether it is mud with different density and viscosity, or various additives, it can be rapidly fused under the action of jet mixing device to form a stable and uniform mixed mud. This is very important to ensure the quality of drilling fluid, cementing fluid, etc., which directly affects the construction effect and safety of the project.
- Jet mixing device has high mixing accuracy and adjustability. By precisely controlling the injection parameters of the jet and the feeding speed of the feeding system, the formulation and performance of the mixing mud can be flexibly adjusted according to different engineering requirements. This enables it to adapt to various complex working conditions and construction requirements under different formation conditions.
- The jet mixing device also has the advantages of compact structure, easy operation and reliable operation. It has a small footprint and is easy to install and move on the construction site. At the same time, the highly automated control system allows the operator to easily grasp the operating status of the equipment and achieve efficient and accurate mud mixing operations.

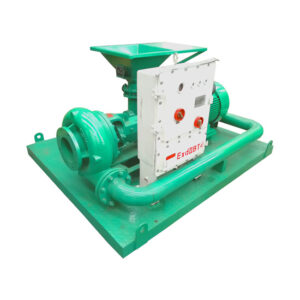

jet mixing device for drilling
As the key equipment in modern mud treatment technology, jet mixing device provides strong support for the development of many industrial fields with its efficient mixing capacity, accurate control performance and reliable operation stability. Whether in the pursuit of efficient production in the petrochemical industry, or in the construction of strict requirements for engineering quality, the jet mixing device has shown excellent value and broad application prospects.
We are a manufacturer of solids control equipment. TR is a manufacturer of solids control system in China, which integrates design, sales, production and service. If you need a jet mixing device, start from TR, we can give you free design solutions. The best mixing device starts with TR. When you choose one of our mixers, you choose an efficient, stable and reliable mud handling solution.
