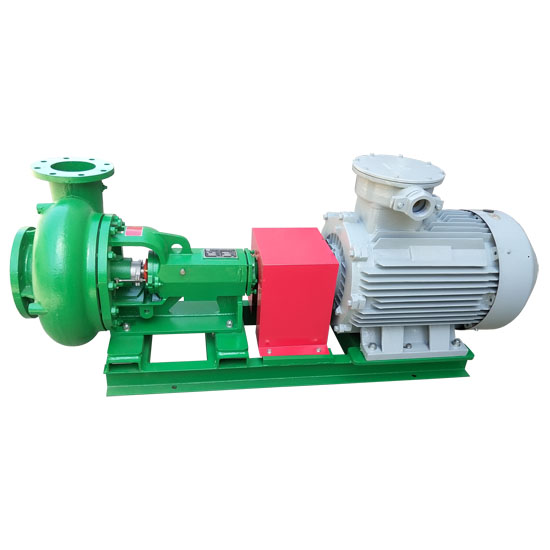

Mission Pump
*Pump Shell and Impeller Wear-resisting Material.
*Open Impeller, Transport High Viscosity Drilling liquid.
*Combination Seal for a Long Service Life
*TRSB8×6×14 320m3/h
Product Struction
In many industrial fields, such as mining, beneficiation, dredging, sewage treatment, etc., Mission pump as a key mechanical equipment, plays a pivotal role. With its unique design and powerful performance, it provides a reliable solution for the transportation of solid-liquid mixtures under various complex conditions.
Mission pump is mainly composed of pump body, impeller, shaft, bearing, sealing device and other components. Its working principle is based on the role of centrifugal force, when the motor drives the impeller to rotate at a high speed, the impeller drives the liquid to do high-speed rotating movement, the liquid is thrown out of the impeller under the action of centrifugal force, into the volute flow channel of the pump body, so as to achieve liquid transportation.
Mission Pump Technical Parameters
| Model | Power | Flow | Lift(m) | Efficiency | NPSH | Electric |
| TRSB8×6-14 | 75KW | 320m3/h | 40m | 65% | 5 | 50HZ |
| TRSB8×6-12 | 355m3/h | 43m | 66% | 4.8 | 60HZ | |
| TRSB8×6-13 | 55KW | 290m3/h | 33m | 64% | 5.5 | 50HZ |
| TRSB6×5-12 | 196m3/h | 48m | 61% | 3 | 60HZ | |
| TRSB6×5-13 | 45KW | 180m3/h | 34m | 60% | 3 | 50HZ |
| TRSB5×4-14 | 149m3/h | 61m | 58% | 4.6 | 60HZ | |
| TRSB6×5-12 | 37KW | 160m3/h | 30m | 60% | 3 | 50HZ |
| TRSB5×4-12 | 112m3/h | 45m | 58% | 4.6 | 60HZ | |
| TRSB6×5-11 | 30KW | 120m3/h | 21m | 62% | 2.5 | 50HZ |
| TRSB5×4-12 | 112m3/h | 37m | 57% | 4.6 | 60HZ | |
| TRSB5×4-12 | 22KW | 90m3/h | 30m | 56% | 4.5 | 50HZ |
| TRSB5×4-10 | 105m3/h | 30m | 57% | 4.2 | 60HZ | |
| TRSB5x4-11 | 18.5KW | 90m3/h | 24m | 56% | 4.5 | 50HZ |
| TRSB4x3-12 | 55m3/h | 46m | 48% | 4 | 60HZ | |
| TRSB4x3-13 | 15KW | 50m3/h | 40m | 48% | 4.5 | 50HZ |
| TRSB4x3-11 | 54m3/h | 35m | 47% | 4 | 60HZ | |
| TRSB4x3-12 | 11KW | 45m3/h | 30m | 47% | 4 | 50HZ |
| TRSB3x2-12 | 28m3/h | 45m | 40% | 3.1 | 60HZ | |
| TRSB3x2-12 | 7.5KW | 45m3/h | 24m | 46% | 4 | 50HZ |
| TRSB3x2-11 | 25m3/h | 35m | 41% | 3.1 | 60HZ | |
| TRSB3x2-11 | 5.5KW | 20m3/h | 23m | 39% | 3 | 50HZ |
Mission pump application in drilling industry:

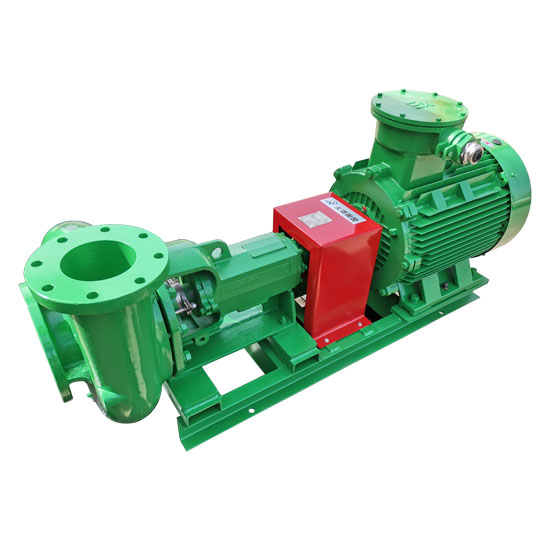

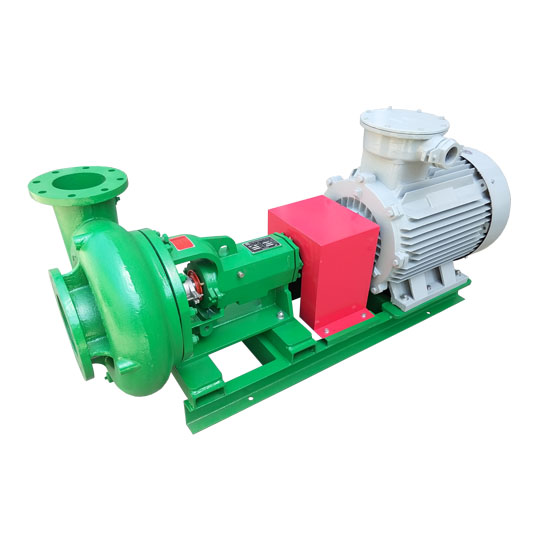

The Mission pump is mainly supplied to the solid control circulation system of oil rig, which is used to provide drilling fluid with certain displacement and pressure to the equipment such as mud desander, mud desilter, mud mixer, to ensure the efficient work of these solids control equipment. Mud Mission pump use advanced design theories to pump drilling fluids or industrial suspensions (slurries). Drilling mud centrifugal pumps pump abrasive, viscous and corrosive liquids. We will provide our customers with the best products to meet the needs of different conditions.
Mission pump applications in other industries:
The role of Mission pump is extensive and important. First of all, in the mining and beneficiation industry,Mission pump is used to transport pulp containing solid particles such as ore particles and sediment. It can efficiently transport pulp from the bottom of the mine to the concentrator for processing under harsh working conditions, ensuring the continuity and efficiency of mining operations.
Our Mission pumps offer a number of significant advantages. Advanced hydraulic design and wear-resistant material manufacturing, so that it has high efficiency, wear resistance, corrosion resistance and other characteristics, can run stably for a long time, reduce maintenance costs. At the same time, we also provide a variety of models and specifications of sand pumps according to the needs of different customers to meet the requirements of various working conditions.
Our Mission pump is interchangeable with mission Centrifugal pumps and our parts are interchangeable.
When you choose our Mission pump, you choose an efficient, reliable and durable industrial power source. We will provide strong support for your industrial production with professional technology, high quality products and perfect service to help you stand out in the fierce market competition. Let's work together for a better future!
We are a manufacturer of Mission pump. TR is a set of design, sales, production, service, China Mission pump manufacturer. If you need sand pump then start from TR.we can give you free design scheme. The best Mission pump starts with TR.
